Product Information:

Wheelset development at AC Schnitzer
A few definitions in advance

Wheel/complete wheel = rim incl. tire
Wheel set = 4 wheels
All-round tires = same tire size on the front and the rear axle

The wheels have a really important role: they are the postcard-sized connection between the vehicle and the road. They play a key role in the driving and propulsion as well as the deceleration - i.e. braking - of your vehicle. This gives the wheels a key role. Anyone who develops and sells wheels therefore has a great responsibility. We are aware of this responsibility; we have internalized it and implement it with every new development.

AC Schnitzer only uses high-quality brand tires, which are developed in close cooperation with premium tire manufacturers. On the one hand, the tires have to transfer the power of the engine perfectly to the road, on the other hand, properties such as braking behaviour, lateral control, water drainage in rain and the properties in straight running are important decision criteria for or against a tire.

A wheel set with wide base tires is always also an investment in increasing driving safety and dynamics. In order to maintain driving comfort when using larger wheel dimensions, we at AC Schnitzer have actively opted against run-flat tires and for sporty, conventional tires. Conventional tires build up less rolling resistance and offer noticeably more comfort.

All AC Schnitzer wheel sets are tuned in multi-stage driving tests in traffic and on race tracks. Only after successful test runs the wheels are released for sale. All AC Schnitzer wheel sets are delivered fully assembled and balanced. They are subject to a two-year manufacturer's warranty. The scope of delivery includes mounting materials such as adapters and wheel bolts as well as the homologation certificate (with the exception of marked wheelsets for export).

Philosophy/Design

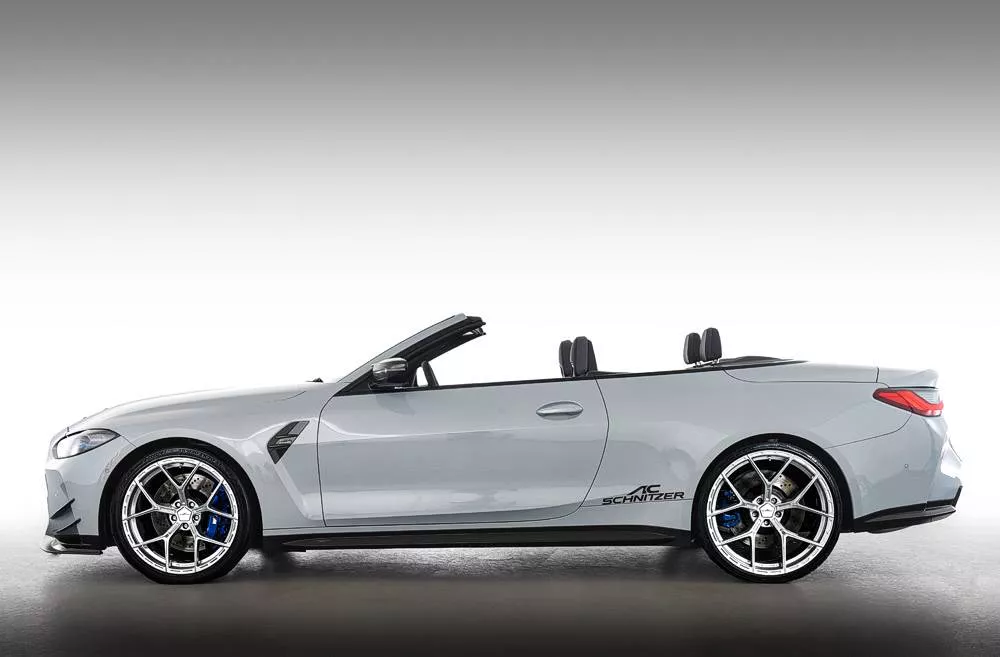

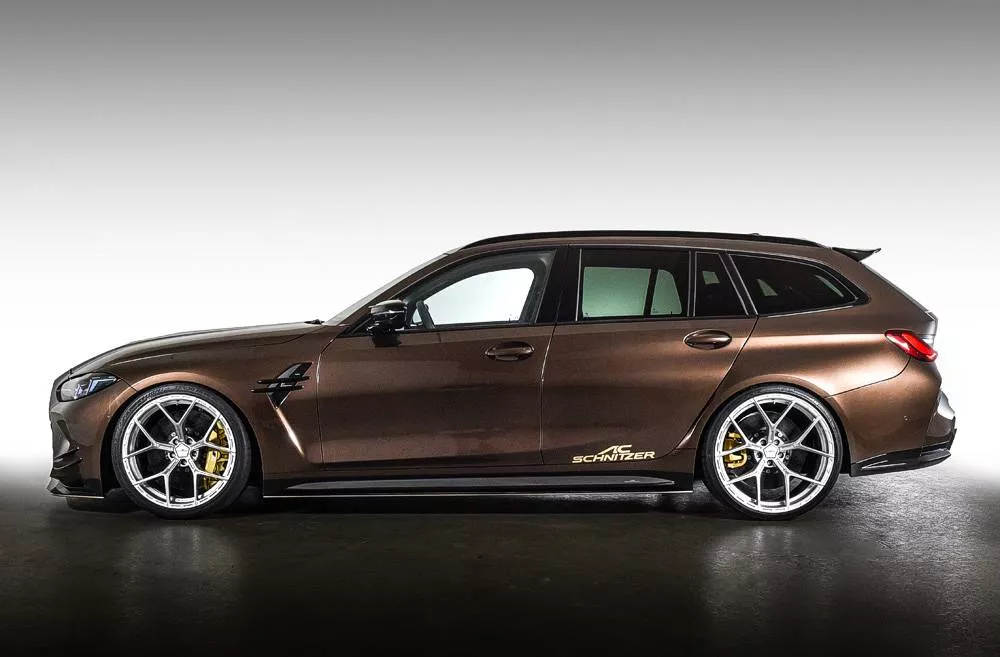

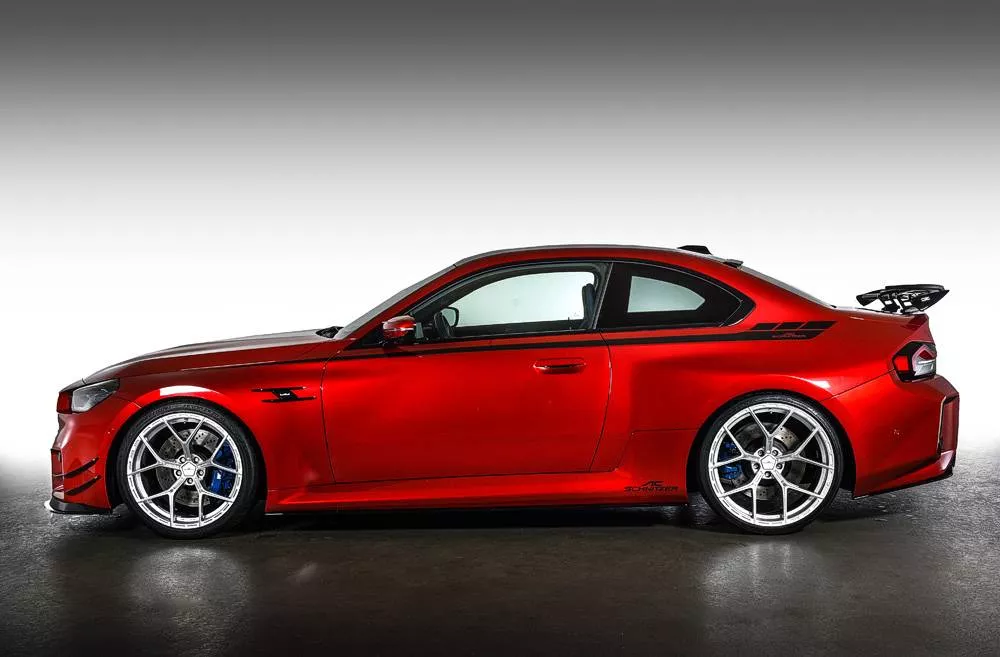

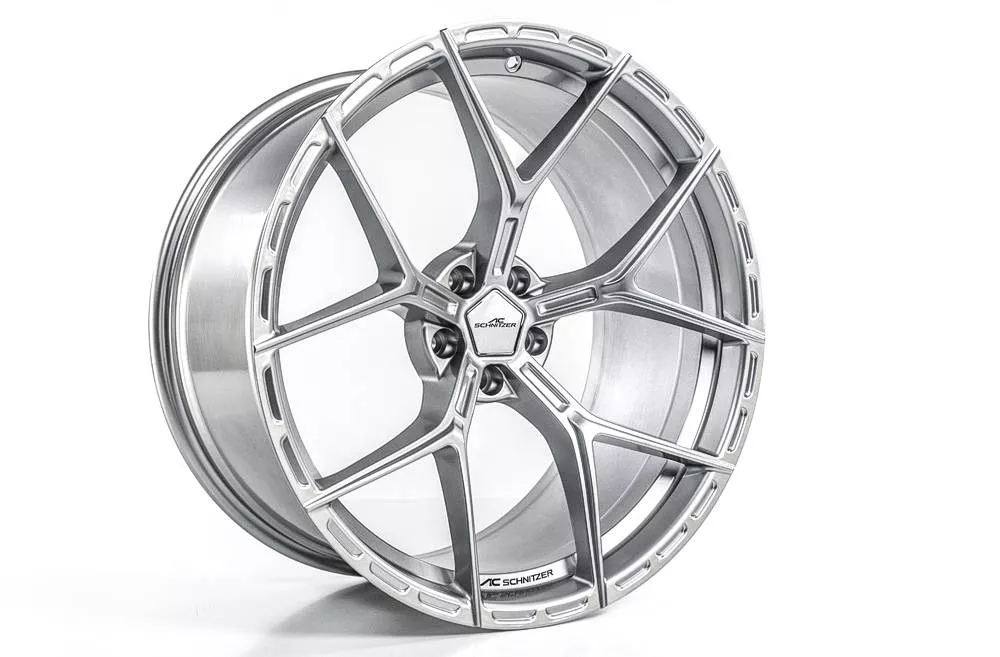

The design of the one-piece AC6 flowforming rims combines delicate lightness with powerful presence. The dynamically shaped, slender Y-spokes are characteristic, extending to the rim edge, thus visually increasing the diameter. Particularly striking is the pronounced concave dishing, which, with a depth of up to 90 mm on the rear axle, creates a spectacular appearance and impressively underscores the sportiness of the M models. This depth is not only a technical statement, but also a visual commitment to uncompromising performance.

Material
Only high-quality aluminium alloys are used. The material is additionally heat-treated in the production process, which results in higher strength and simultaneous weight reduction.
Material samples during the production process guarantee the constant and high quality of the material.

Manufacture
The new AC6 flowforming rims are lighter than conventionally cast alloy rims thanks to the production process, and this is measurable: the 10.0J x 20" weighs just 11.9 kg, and the 10.5J x 21" rim also weighs just 12.9 kg.

The flowforming process is one of the most advanced manufacturing technologies in wheel industry. In this production process, after the actual aluminium casting, the raw product is further processed by rolling it out. This step serves to compress the metal, which guarantees greater stability and impact resistance of the rim.

On the other hand, the improved stability also allows the design of the wheels to be more filigree, as the wall thicknesses can be significantly thinner compared to conventionally manufactured rims.

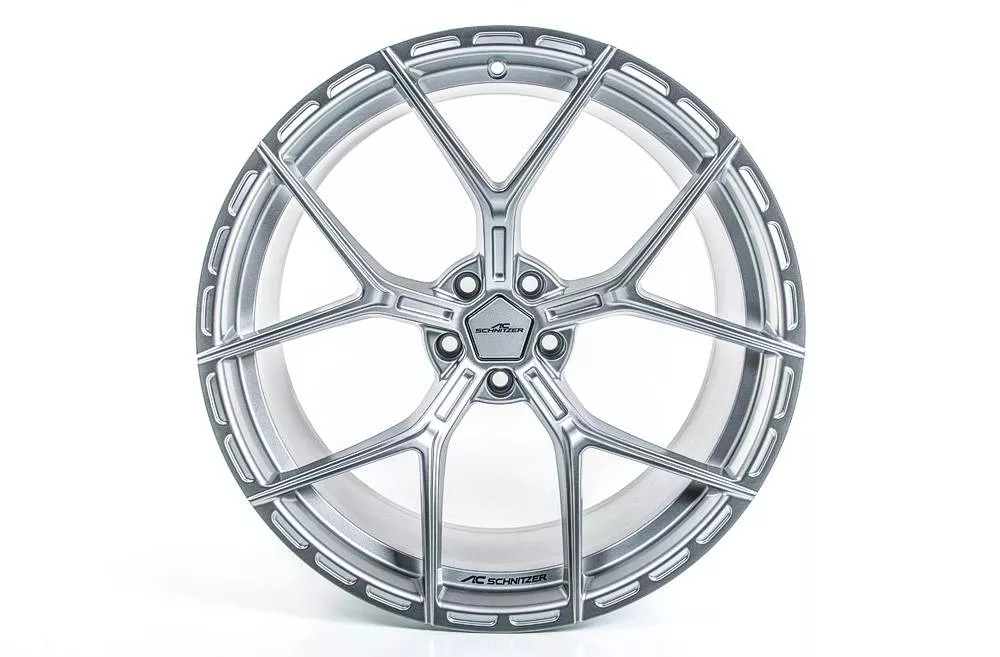

Surface Silver
In this process, the wheel is first primed and then completely painted. A two-layer clear coat is then applied, consisting of a polyester primer and an acrylic clear coat.

Test Procedures / Safety
After their design, the first sample rims are manufactured under real production conditions. These must undergo a multitude of tests. Among other things, the strength is tested. The "rim life" is simulated in the bending circumferential test. Every AC Schnitzer rim must withstand this intact in order to be allowed to be produced and sold at all.
This is followed by vehicle-specific tests, including test installations with check of unobstructed movement and driving tests on public roads and on race tracks. Only after these procedures our rims receive their homologation, i.e. the approval to be used in road traffic.

Wheels are safety-relevant components. Therefore, they are checked and tested with the greatest care. This starts with the first chemical material tests and ends with hard testing machine endurance runs:

- § 30 StVZO wheel guideline
- ECE R124
- Bending-rotation tests
- 90° impact test
- unwinding tests

Scope of delivery:
- 4 complete wheels AC6 Flowforming
- mounted and balanced
- 4 pieces RDC wheel electronics modules
- specific hub cover
- homologation certificate
- vehicle- and rim-specific mounting and fastening material
- 2 years manufacturer's warranty

Uniqueness of the wheel set with the AC6 Flowforming Wheels:

- weight-optimized
- developed exclusively for BMW vehicles
- machined original AC Schnitzer logo

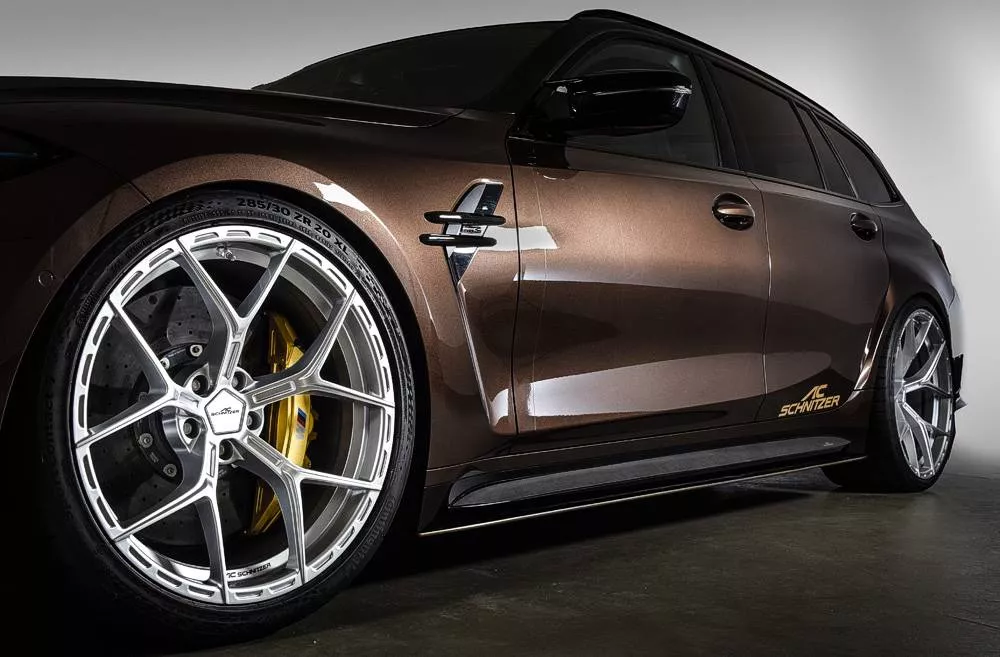

- open design in silver, giving a clear view to the brakes
- engineered in Germany
- compatible with standard RDC system
- also available as a rim without tire
- warranty 2 years
- production monitored according to ISO standard

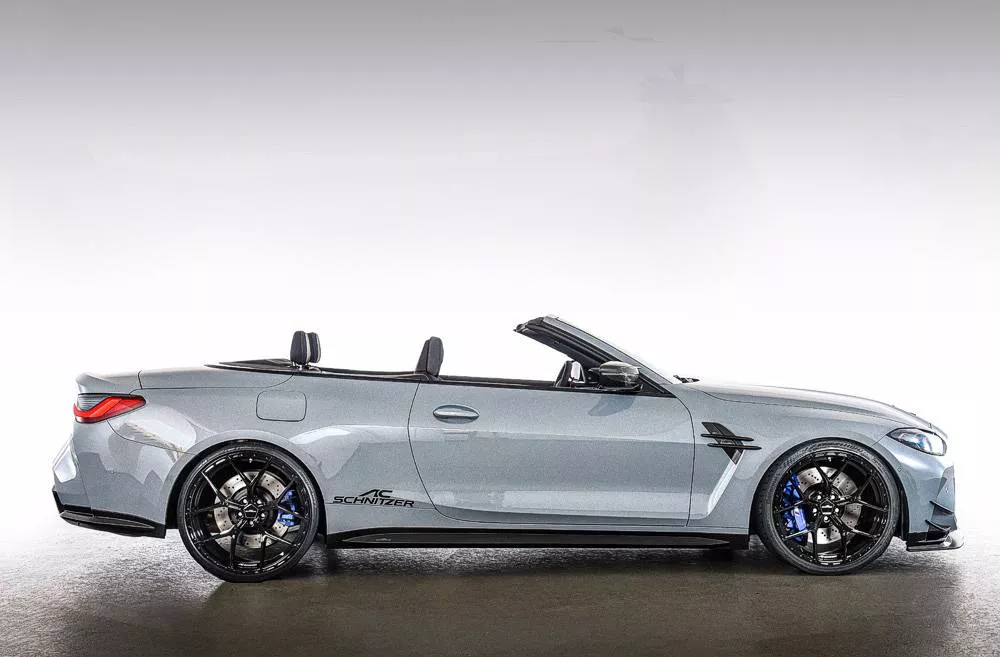

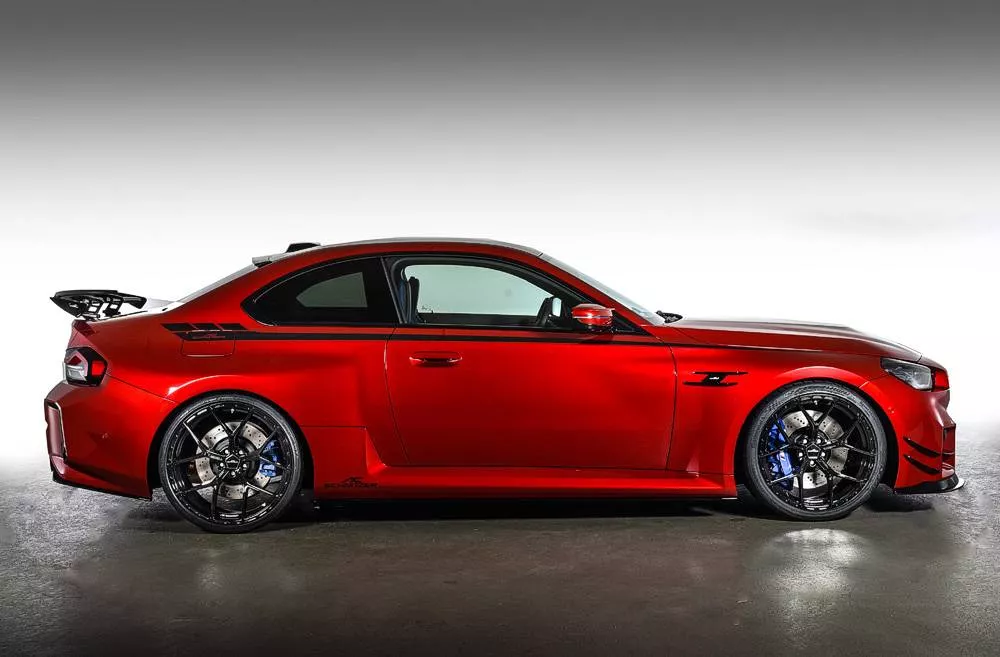

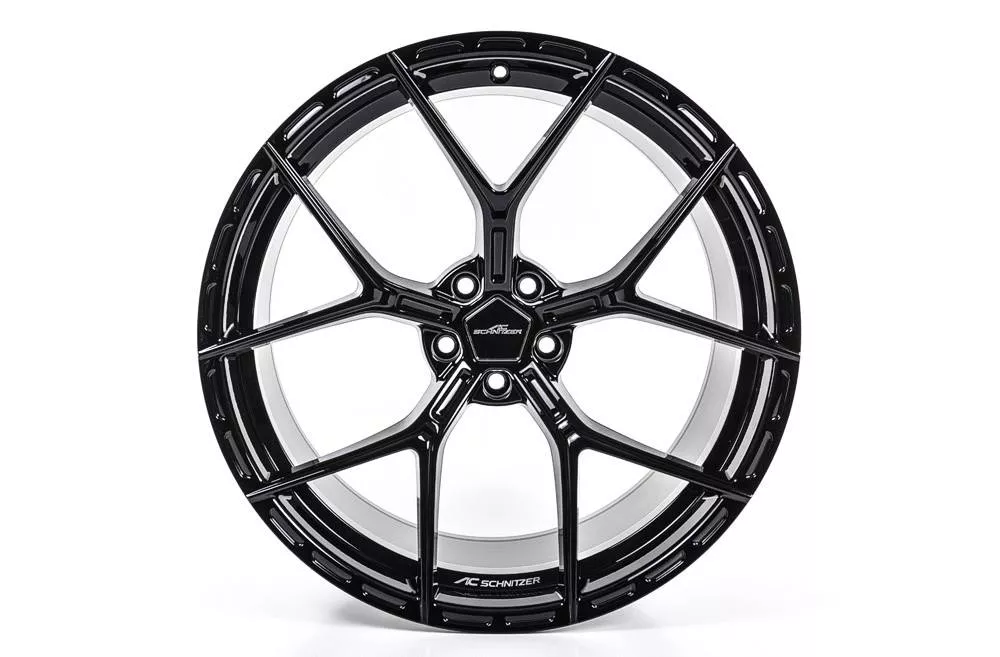

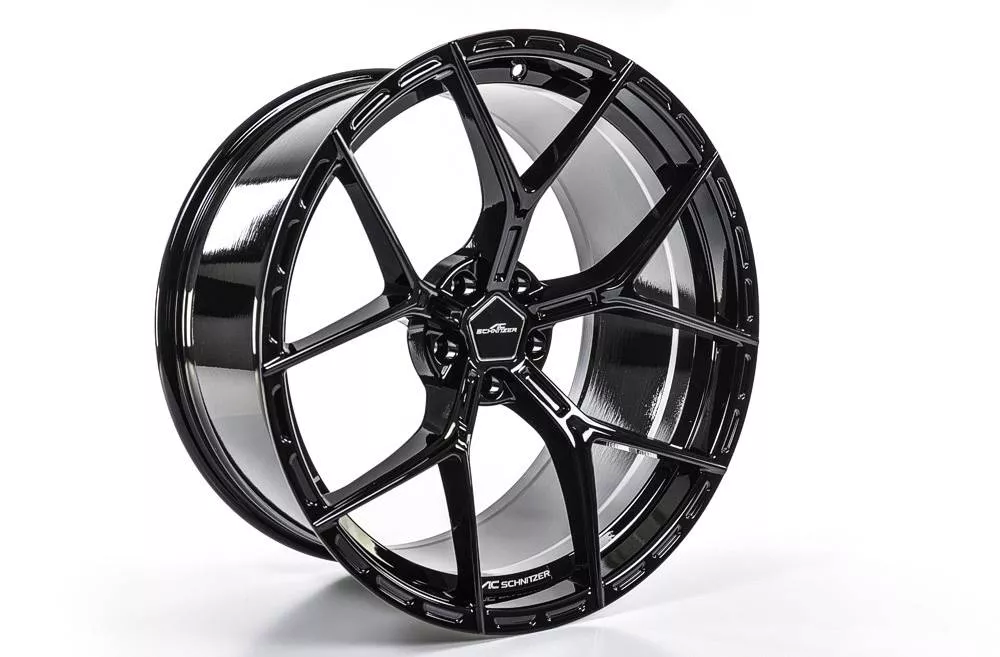

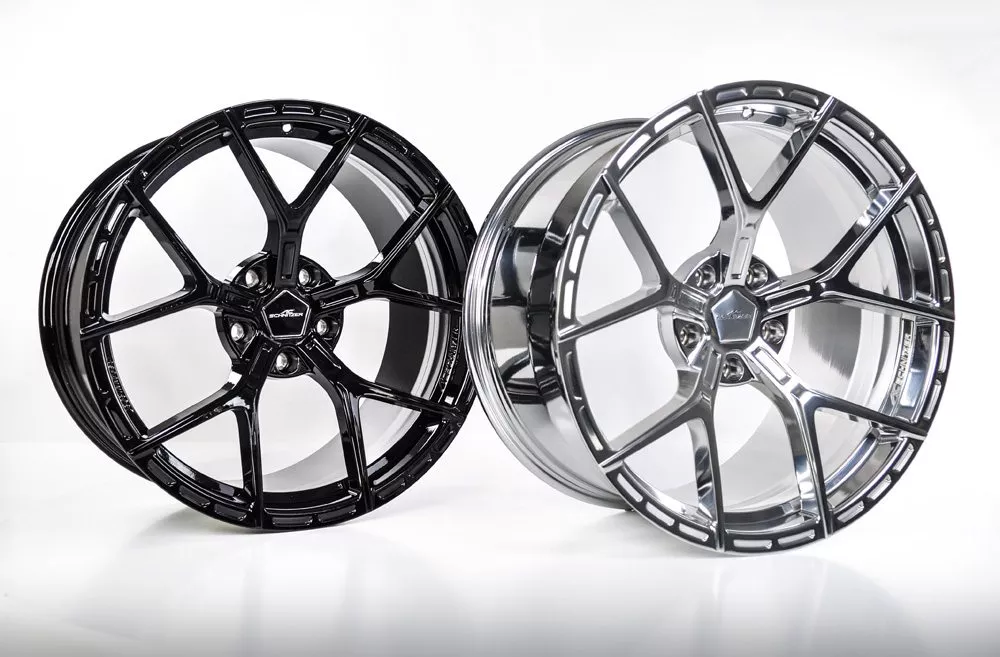

- Silver optionally also in Black
- KDS mount for wheel alignment according to BMW specification is available
